Tank Systems
Fuel Tech can supply Above Ground Storage Tanks to meet any need. Sizes are available from 500 to 50,000 gallons. Tanks are available with a full “box frame” for existing sloped concrete or can be “saddle” mounted in order to pitch the tank towards the rear for sumping purposes. Tanks can be ordered single wall, double wall, UL-142 ‘Flameshield’, and UL-2085 ‘Fireguard’. No matter your application, Fuel Tech can design, fabricate, and install the solution.
Call us today at 1-321-268-2065!
Fueling Layouts
Click on the pictures for a larger image and equipment layouts.

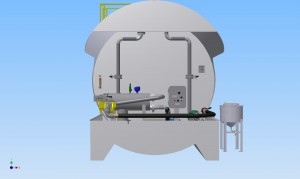

Bottom Load Tanks are designed to fill airport refueler trucks which in turn fuel jets and airplanes at a remote location.
Dual Hose Reel systems are designed for JET-A overwing and underwing plane fueling at up to 65 gpm, and offload transports at 200 gpm.
This tank can be used for both JET-A and AVGAS applications. It can fuel overwing at 35-65 gpm, and bottom load trucks at 200 gpm.
Tank Styles
Canopy Tanks
Our CANOPY TANKS provide a degree of protection for your meters, hoses, and other components affected by ultraviolet light and other weather dependant deterioration. The standard deck is 6′ long but can be configured up to eight feet.
Canopy Style Tanks – Bar Harbor, Maine
Overhead Door Canopy Tanks
Our OVERHEAD DOOR CANOPY TANKS provide a higher level of protection from the elements and is lockable for another degree of security for your fueling systems. The standard enclosed area is 6′ long but can be configured up to eight feet.
Enclosed Canopy Tank with Roll Up Door – Brookhaven, NY
Saddle Style Tanks
SADDLE STYLE TANKS allows for the correct slope of the tank no matter the limitations of the site pad. Footers can be poured with different elevations or the saddles themselves can be fabricated with different heights to achieve proper slope for sumping.
Saddle Style Tank being prepared to ship
Satellite Tanks
SATELLITE TANKS provide versatility for adding capacity to a fuel farm or allowing remote dispensing in combination with a fueling cabinet.
Remote Satellite Tank
